Wago 221 Connector Screw-Mount Holder

Description

IMPORTANT – HOLDER ONLY. This listing is for the 3D-printed holder described below, in the quantity and options selected. Wago connectors, wiring and other equipment shown in use are NOT INCLUDED. Supply your own connectors.

INDEPENDENT ACCESSORY – NOT AN OFFICIAL WAGO ACCESSORY. Brand and model names identify equipment this Layered Works item is intended to fit or hold. Wago did not make, approve or endorse it. Check your exact model, dimensions and fit before use. Do not force a fit or overload the item. We cannot accept responsibility for damage caused by incorrect fit, installation, overloading or misuse where our accessory and description are not at fault. Your statutory rights remain unaffected if our accessory is faulty or misdescribed.

ELECTRICAL SAFETY. This is a mounting holder only, not an electrical enclosure, insulation or a substitute for the connector maker’s instructions. Use only compatible connectors in a suitable installation, and have electrical work carried out by a competent person with the supply safely isolated.

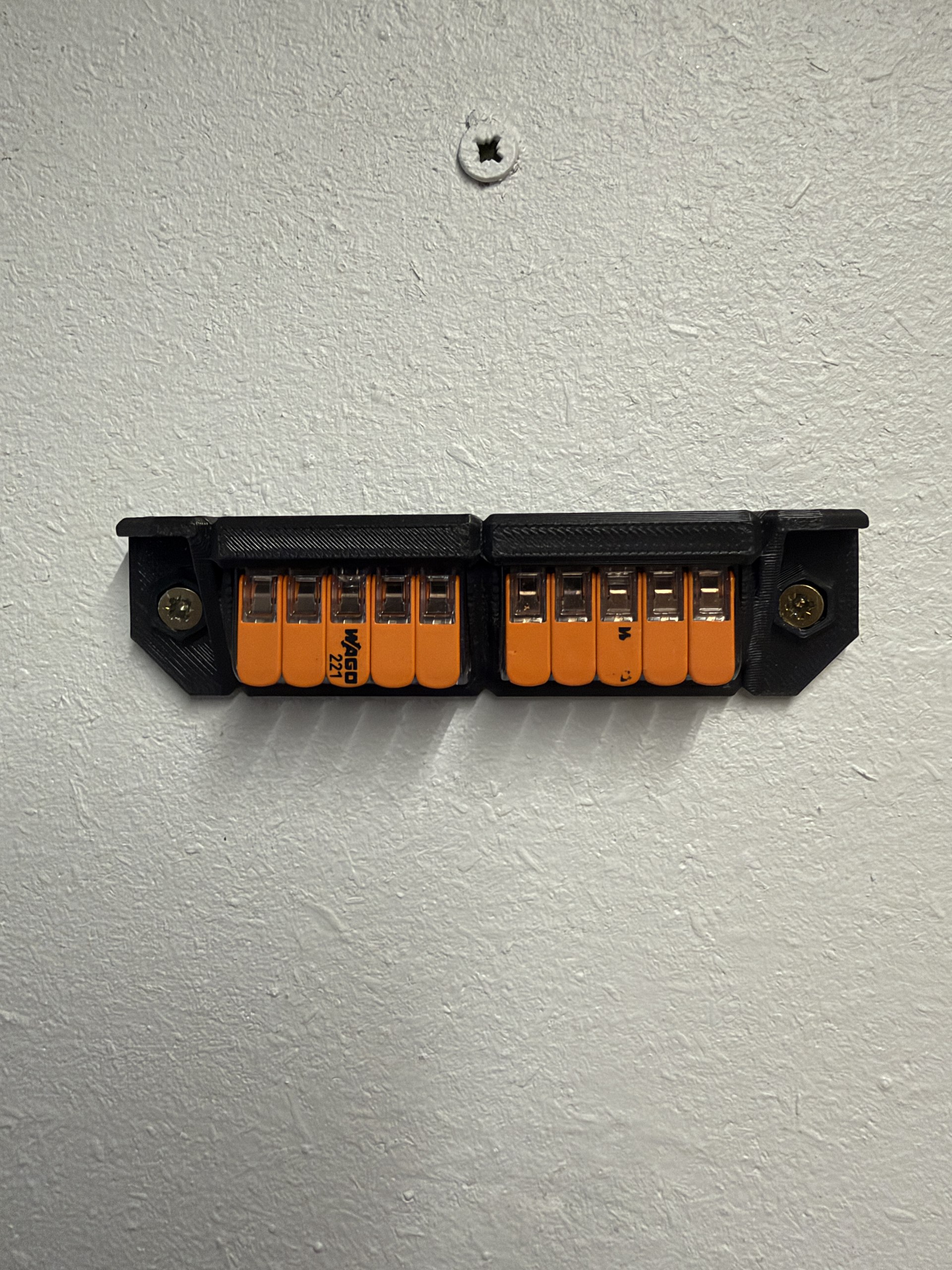

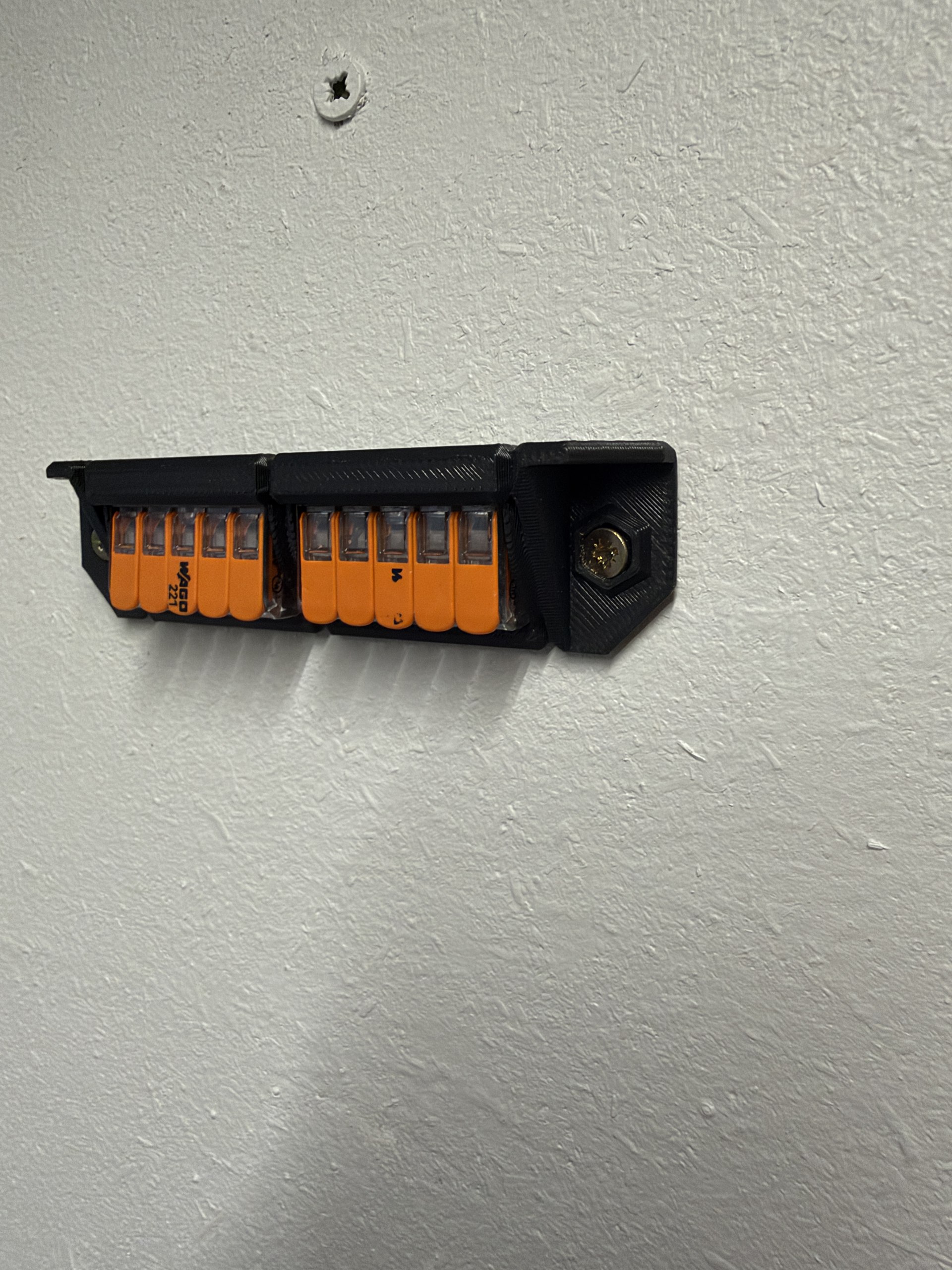

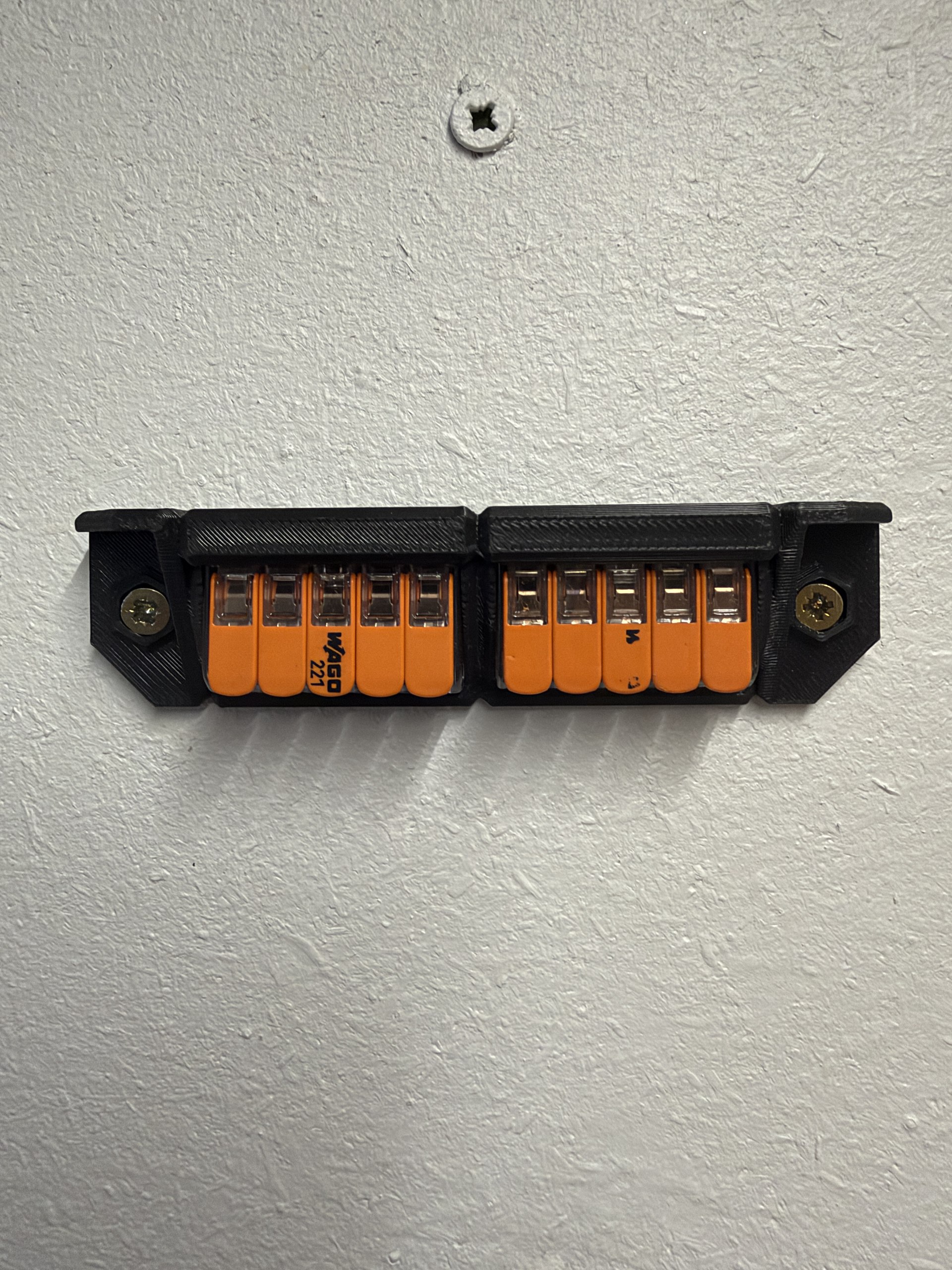

Keep suitable connectors grouped with this screw-mount Wago 221 connector holder. Choose a layout for 3-port connectors, 5-port connectors or a combination, so the mount matches the arrangement you need.

Product details

• 11 layouts for suitable 3-port and 5-port Wago 221 connectors.
• Choose the number and combination of connector bodies in the dropdown.
• Black, white or grey.
• Access holes allow a connector to be released from below when safely disconnected.

Size and fit

Designed for the smaller 4mm²-family Wago 221 3-port / 5-port case shapes, commonly 221-413 and 221-415. Check the exact connector casing and selected layout. Other Wago families and larger 6mm² connectors are not assumed to fit.

• 1 × 3-port: 24.5 × 52.5 × 14.3mm.
• 1 × 5-port: 24.5 × 63.5 × 14.3mm.
• 2 × 3-port: 24.5 × 75 × 14.3mm.
• 2 × 5-port: 24.5 × 97 × 14.3mm.
• 3 × 3-port: 24.5 × 97.5 × 14.3mm.
• 3 × 5-port: 24.5 × 130.5 × 14.3mm.
• 4 × 3-port: 24.5 × 120 × 14.3mm.
• 4 × 5-port: 24.5 × 164 × 14.3mm.
• 1 × 3-port + 1 × 5-port: 24.5 × 86 × 14.3mm.
• 2 × 3-port + 2 × 5-port: 24.5 × 142 × 14.3mm.
• 3 × 3-port + 3 × 5-port: 24.5 × 198 × 14.3mm.

Dimensions are approximate overall model dimensions; orientation may differ when mounted. Allow for normal manufacturing variation.

What is included?

One selected mount, two screws and wall plugs. Wago connectors, cables, nuts and bolts are not included.

Unless listed above, tools and other demonstration items shown in the photographs are for illustration only and are not included.

Colour and finish

Made to order in your selected colour. This is a physical printed accessory, not a digital STL file. Visible layer lines, small surface variations and minor marks from support removal are normal characteristics of the printing process, not a moulded finish. Colour can vary slightly with filament batches, lighting and screen settings. Keep away from high heat and hot surfaces.

Before ordering

Please compare your exact item with the description, dimensions and photographs. Model names alone do not guarantee fit across every generation or version. Contact Layered Works if you are unsure before ordering.

Important use information

This is a mechanical organiser only, not an electrical connector, approved mounting carrier, junction box, protective enclosure or insulation. It does not inherit the connector’s temperature or electrical ratings. Electrical installation must be carried out by a competent person using any required suitable enclosure and compliant equipment. Isolate power before installing or releasing connectors.

Manufactured by Layered Works as an independent accessory. The named tool or console brand identifies compatibility only; this is not an official product or an endorsement by that brand.

Design credit

WAGO 221 Mount – 11 Variations by VC Design. Used under Creative Commons Attribution 4.0 International (CC BY 4.0). Printed by Layered Works in your selected colour.
