Makita tool Bit Holder | Fits Multiple Models | Multiple Colours | Bit Organiser

Description

IMPORTANT – HOLDER ONLY. This listing is for the 3D-printed holder described below, in the quantity and options selected. Tools, batteries, sockets, bits and other items shown in use are NOT INCLUDED. Supply your own equipment.

INDEPENDENT ACCESSORY – NOT AN OFFICIAL MAKITA ACCESSORY. Brand and model names identify equipment this Layered Works item is intended to fit or hold. Makita did not make, approve or endorse it. Check your exact model, dimensions and fit before use. Do not force a fit or overload the item. We cannot accept responsibility for damage caused by incorrect fit, installation, overloading or misuse where our accessory and description are not at fault. Your statutory rights remain unaffected if our accessory is faulty or misdescribed.

Makita Tool Bit Holder | Left & Right Pair | Fits Multiple Models | Multiple Colours

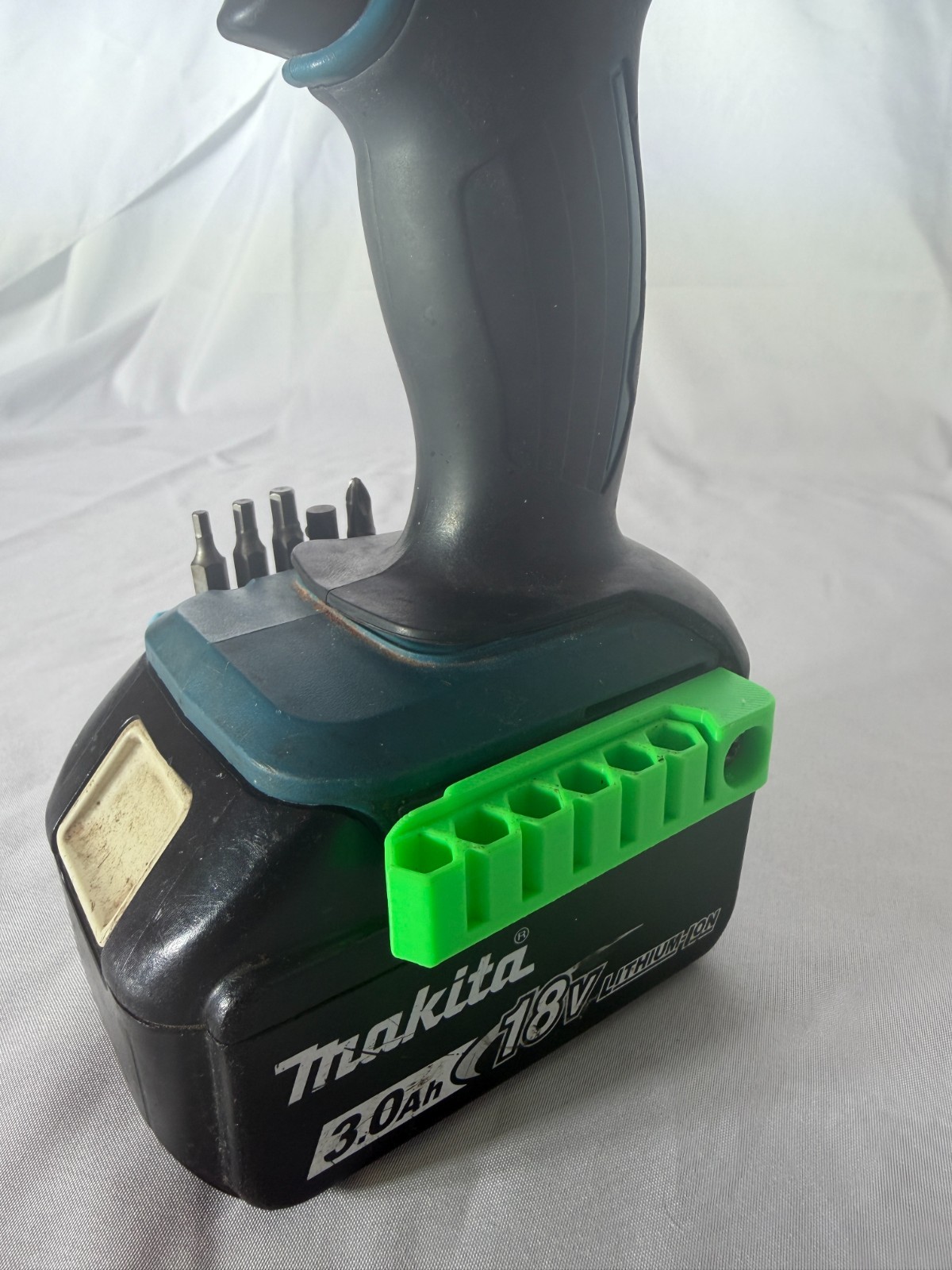

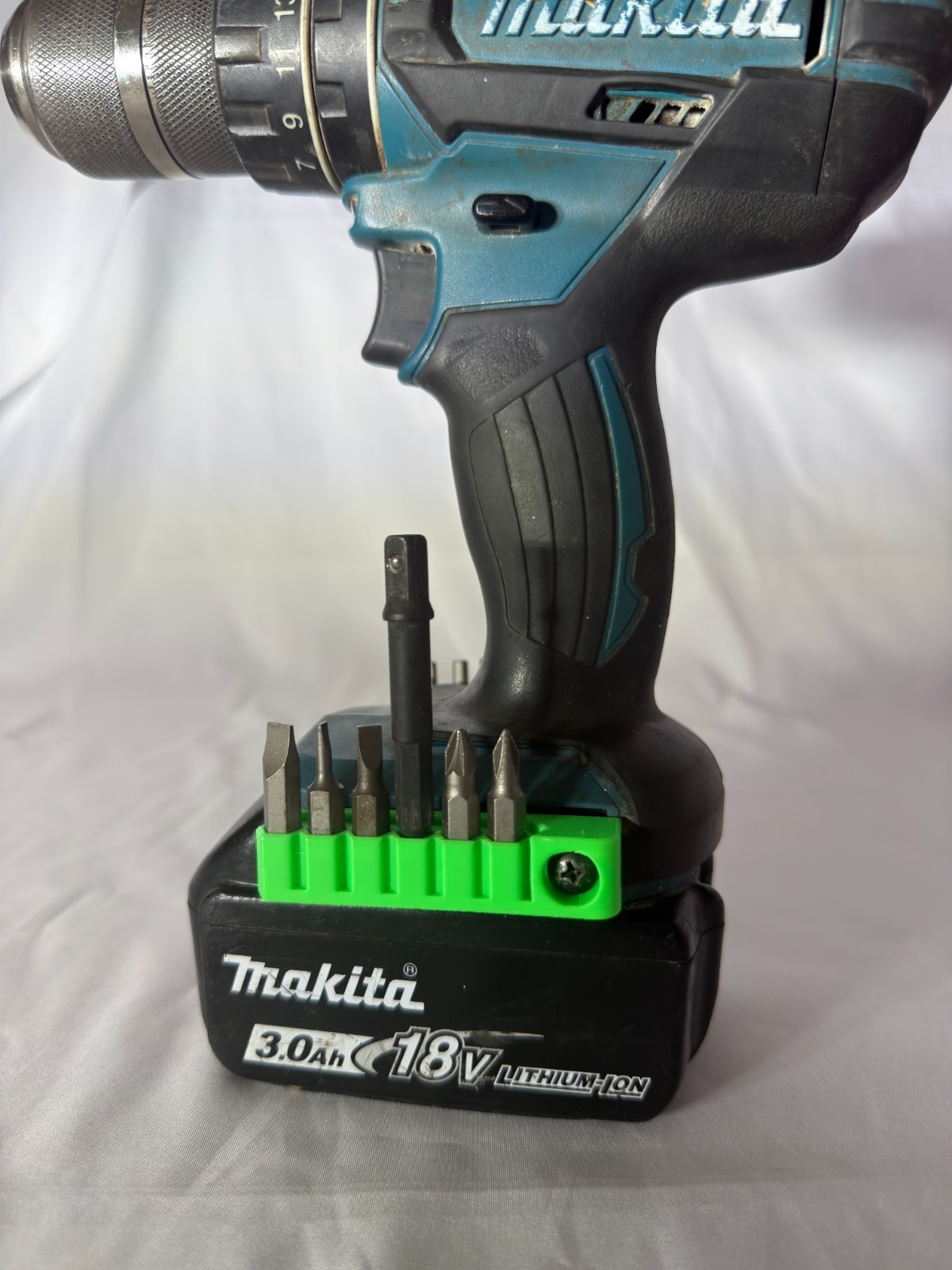

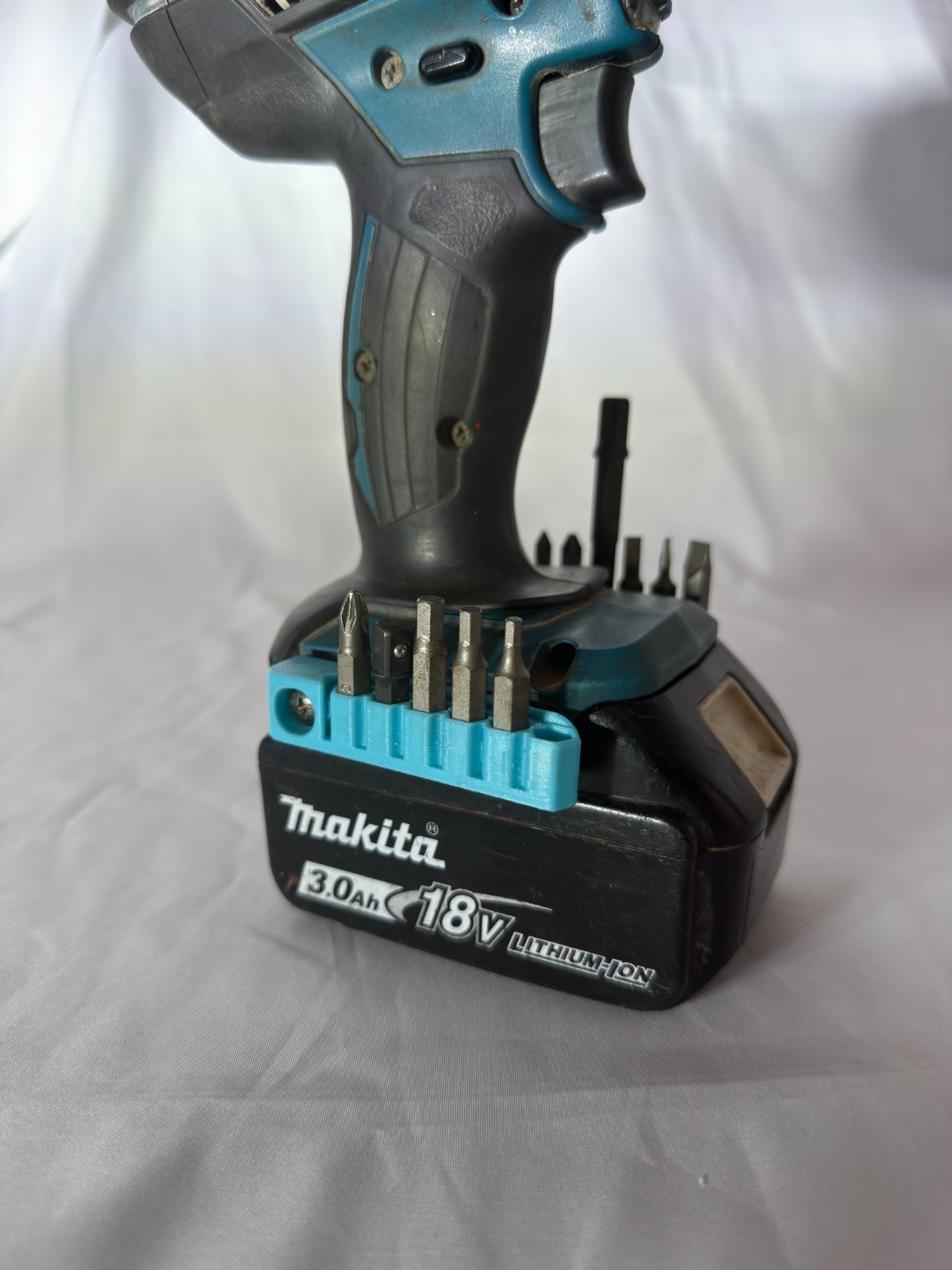

Keep your most frequently used screwdriver and drill bits organised and ready to use with this Makita tool mounted bit holder set. Designed to attach directly to compatible Makita cordless tools, the holders provide convenient onboard bit storage without needing to search through a toolbox, case or pocket.

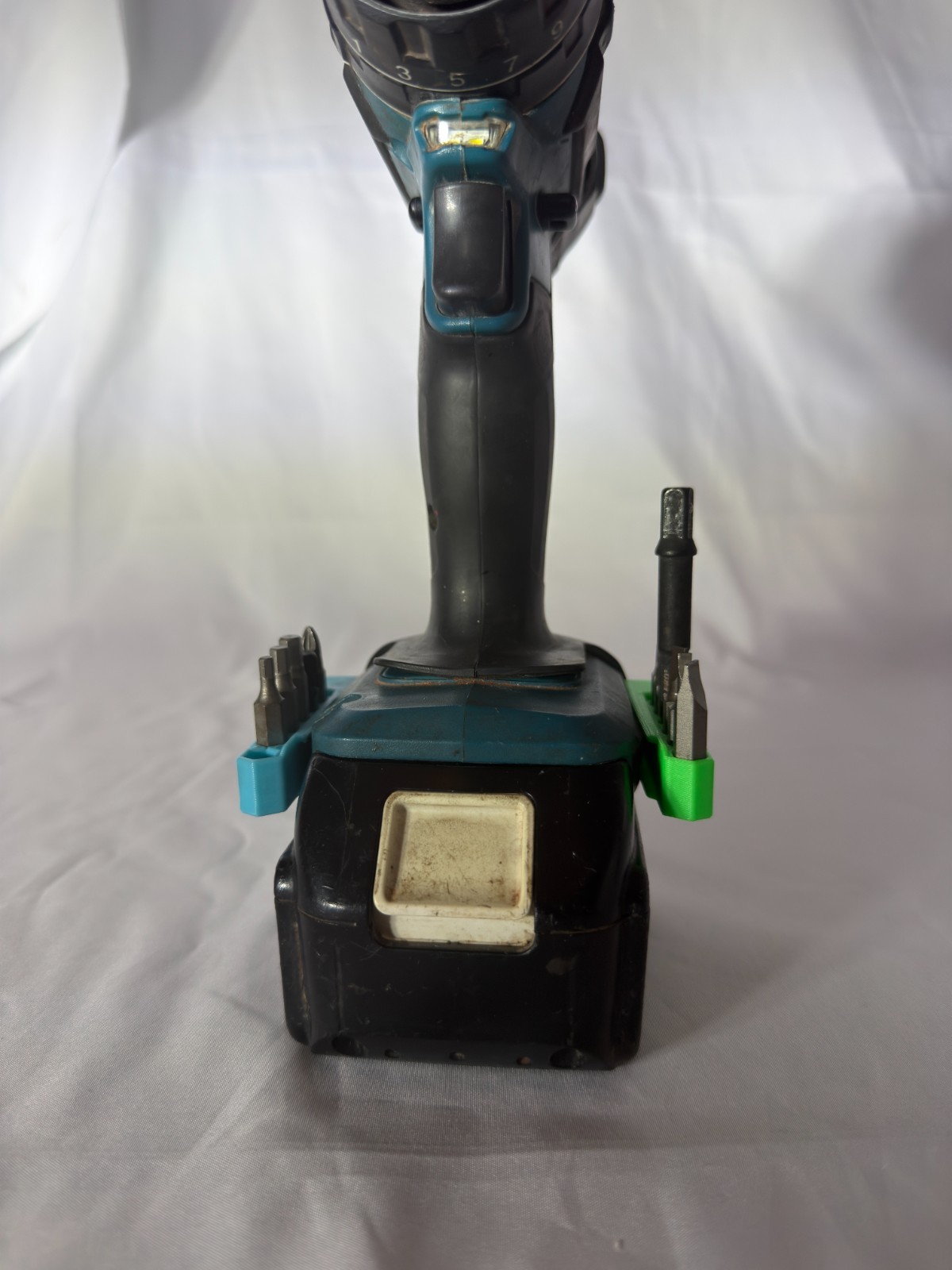

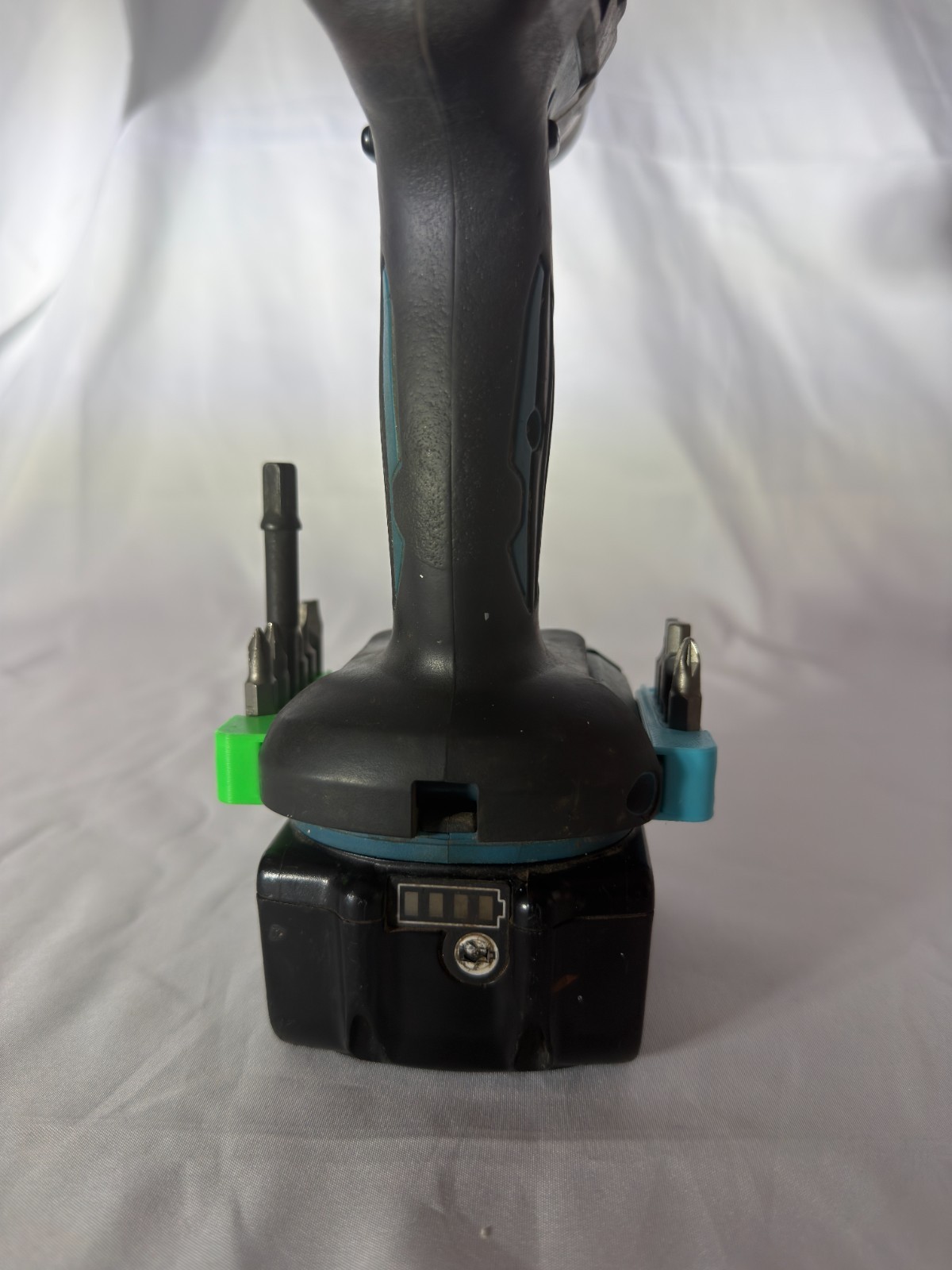

Each set includes 2 holders: one holder for the left side of the tool and one for the right side. The handed design follows the shape of the tool body for a cleaner fit and allows bits to be stored on both sides.

Key Features

• Designed for compatible Makita cordless drills and impact drivers
• Includes 1 left holder and 1 right holder
• Provides convenient onboard storage for commonly used bits
• Magnetic retention helps keep compatible bits positioned in the holders
• Attaches using the existing accessory screw positions on the tool
• Uses the original Makita screws where available
• Replacement screws can be purchased separately if required
• Compact design follows the side of the tool body
• Helps reduce loose bits in pockets, cases and toolboxes
• Suitable for professional tradespeople, technicians and DIY users
• Available in multiple colours
• 3D printed and made to order

What You Receive

• 1 x left side Makita bit holder
• 1 x right side Makita bit holder

The holders are handed components. The left holder is designed for the left side of the tool and the right holder is designed for the right side.

Product Size

Approximate dimensions per holder:

• Length: 68.5mm
• Width: 13.5mm
• Height: 14.4mm

Dimensions are approximate and may vary slightly due to the 3D printing process.

Tested Tool Compatibility

This bit holder set has been tested with the following Makita models:

• Makita DTD154 impact driver
• Makita DDF484 drill driver
• Makita DHP482 combi drill
• Makita DTD152 impact driver

It may also fit other Makita tools that use the same or a very similar tool body, side profile and accessory screw arrangement.

Please note: compatibility with models not listed above cannot be guaranteed. Please compare your tool body, mounting points and available side clearance with the product photographs before ordering.

Screw And Installation Information

Screws are not included. The holders are designed to use the original Makita accessory screws already fitted to your tool, where available.

• Remove the appropriate original screw from the side of the tool
• Position the correct left or right holder over the mounting point
• Refit and tighten the original screw carefully
• Check that the holder is secure before inserting bits

If your tool does not have the required screw, or the original screw is missing, a replacement can be purchased using:

• Makita replacement screw code: Makita 251314-2
• Alternative screw size: M5x10mm

Please confirm the thread and screw compatibility with your exact tool before purchasing or fitting a replacement screw. Do not force an incorrect screw into the tool body.

Important Installation And Warranty Information

Removing, replacing or reusing screws on your tool may affect the manufacturer’s warranty. Please check your Makita warranty conditions before installation.

Always use the correct screw for your exact tool model, avoid overtightening and check that the holder is securely fitted before use. Incorrect screws or installation may damage the tool body or mounting threads.

This accessory does not alter or replace the terms of the manufacturer’s warranty. Your statutory rights and eBay buyer protections are not affected.

Onboard Bit Storage

Small driver bits are easy to misplace when moving between jobs. These holders provide a dedicated storage position directly on the tool, helping keep commonly used bits nearby and ready to swap.

• Reduces time spent searching for loose bits
• Keeps commonly used bits attached to the tool
• Useful when working from ladders, vans or mobile setups
• Helps reduce loose bits inside tool cases and bags
• Provides storage on both sides of the tool

Suitable For

• Screwdriver bit storage
• Driver bit organisation
• Makita drill accessories
• Makita impact driver accessories
• Workshop and garage use
• Van and mobile tool setups
• Construction and site work
• Electricians, builders, joiners and installers
• DIY users and home workshops

Benefits Of Using These Holders

• Two holders included: one for each side of the tool
• Faster access: keeps commonly used bits close to hand
• Magnetic retention: helps keep compatible bits positioned
• Compact design: fits closely against the tool body
• Uses existing mounting points: no drilling into the tool is required
• Cleaner storage: helps reduce loose bits in cases and bags
• Multiple colours: choose a colour to suit your tool setup

What’s Included

• 1 x left side bit holder
• 1 x right side bit holder
• Fitted magnetic retention components

Please note: Makita tool, battery, drill bits, driver bits, screws and accessories are not included. Any photographs showing a tool or bits are for display and compatibility examples only.

Made To Order

This item is 3D printed and made to order.

Small layer lines, slight surface marks, minor texture differences or colour shade variations may be visible due to the 3D printing process. These are normal characteristics of 3D printed products and do not affect normal use.

Colour Options

The holder set will be supplied in the colour selected from the variation menu.

Colours may appear slightly different in person due to lighting, screen settings and filament batches.

Custom Colours And Custom Prints

If you would like a different colour, custom tool accessory or another item 3D printed, please contact us before ordering.

Many of our products are created from customer requests, so we are happy to discuss custom bit holders, power tool accessories, battery mounts, wall organisers and workshop storage products.

Please Check Before Ordering

• This listing includes 1 left holder and 1 right holder
• Screws are not included
• The holders use the original Makita accessory screws where available
• A Makita 251314-2 or compatible M5x10mm screw may be suitable if a replacement is required
• Always confirm screw compatibility before fitting
• Do not use an incorrect screw or force it into the tool
• Please check your exact Makita tool model before purchasing
• Confirmed models include DTD154, DDF484, DHP482 and DTD152
• Other tools with a similar body may fit, but compatibility is not guaranteed
• Fit may vary depending on tool generation, body design and manufacturing tolerances
• Removing or replacing original screws may affect the manufacturer’s warranty
• Do not overtighten the screws
• Check both holders regularly and retighten carefully if required
• Stop using the holders if they become cracked, loose or damaged
• Do not store sharp bits where they could cause injury
• This item is not manufactured by, endorsed by or affiliated with Makita

As this item is made to order, please check compatibility, confirm that suitable mounting screws are available and select the correct colour before purchasing.

Order Yours Today

Keep your commonly used bits attached to your tool and ready for work with this Makita left and right magnetic bit holder set.

Design Attribution & Licence

Design by Cmarlow on PRINTABLES.

Licensed under Creative Commons Attribution 4.0 International.

Changes: None, except technical preparation required for 3D printing.

Printed and sold independently by Layered Works. The original designer does not endorse or sponsor this product.
